Reversible Plane Stainless Steel Door Hinge SS Swing Door Handle Coldroom Parts

Adjustable Reversible Plane Stainless Steel Door Hinge (with Spring), SS Swing Door Handle for Cold Room Door

Reversible Reach Hinge

Reversible Plane Hinge (with spring)

Adjustable Door Hinge

Used for coolroom, freezer room, cold storage doors

Stainless Steel, Zinc materials ect.

CM-1220-H
● Material: High pressure die-cast zinc
●  Support the farthest weight: 85kg

CM-1220-HS
●  Material: Precision stainless steel
●  Support the farthest weight: 95kg

● Special designed plane door hinge, safe and durable
● Beautiful figure, the door frame and coldroom wall are in the same plane．
● With CM or YL series series of door closer and door handle, can close door quietly, and prevent the cold air leaking (see below door photos)

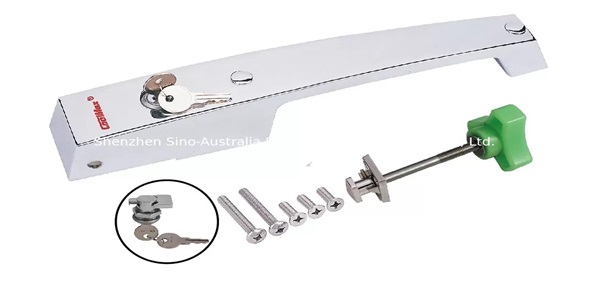

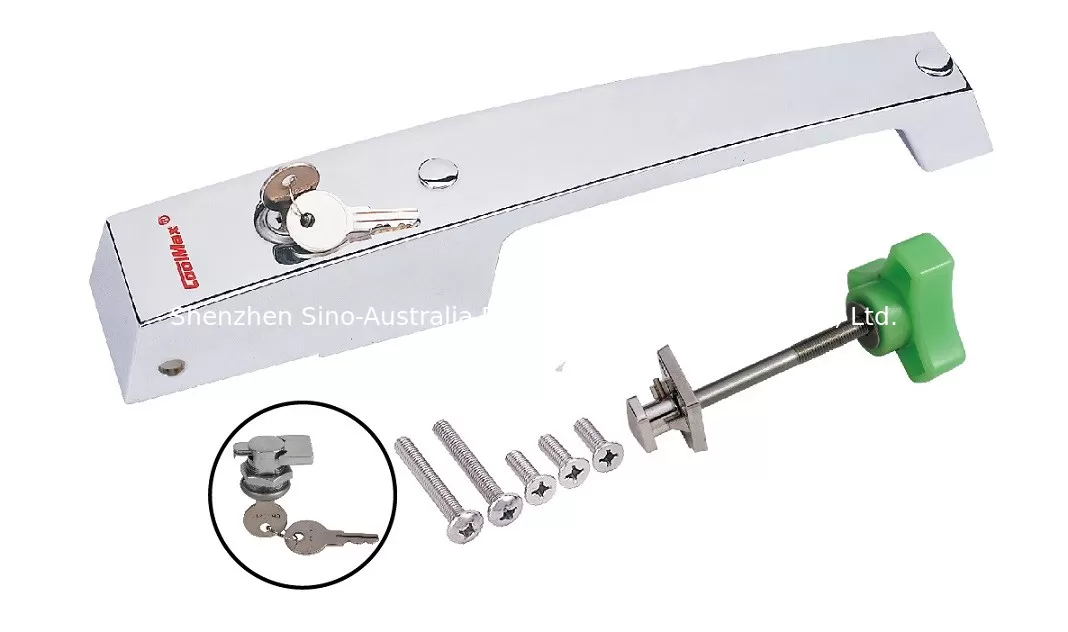

Swing / Hinged Door Handles

CM-1210-H

Material: high pressure die-cast zinc

CM-1210-HS

Material: precision stainless steel

●  Inside release handle is suitable for 80-100mm thickness door frame. Special sizes are on your option.

●  With speical designed telescopic lock

●  Can be installed padlock in the front of the latch.

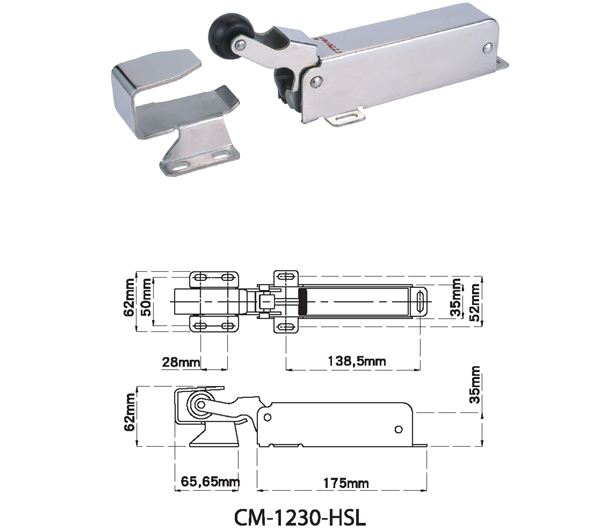

Heavy-Duty Hydraulic Door Close

CM-1230-HSL
(Material: Stainless steel body, stainless case．)

●  This kind of door closer is fit for plane door. It can close the door tightly in 3-4 seconds. It can prevent the cold air leaking, and close door quietly.

●  The structure is hydraulic, the cylinder is filled with cold-resistant hydraulic oil. You can open door freely eventhough outdoor temperature is below -20℃.

●  CM-1230-HS opening strength: 6kgs, closing strength: 3kgs.

●  CM-1230-HSL opening strength: 8kgs, closing strength: 5.5kgs.

●  The case and bracket's material are all 304# stainless steel, CM-1230-HS's case is made of plastic.

●  Remark: with 7 pcs self-tapping screws attached.

Saftety Latch

CM-1179-L CAM-LIFT saftety latch

Material: high pressure die-cast zinc, with a set of stainless steel screw, adjustable height from 63.00mm--92.00mm

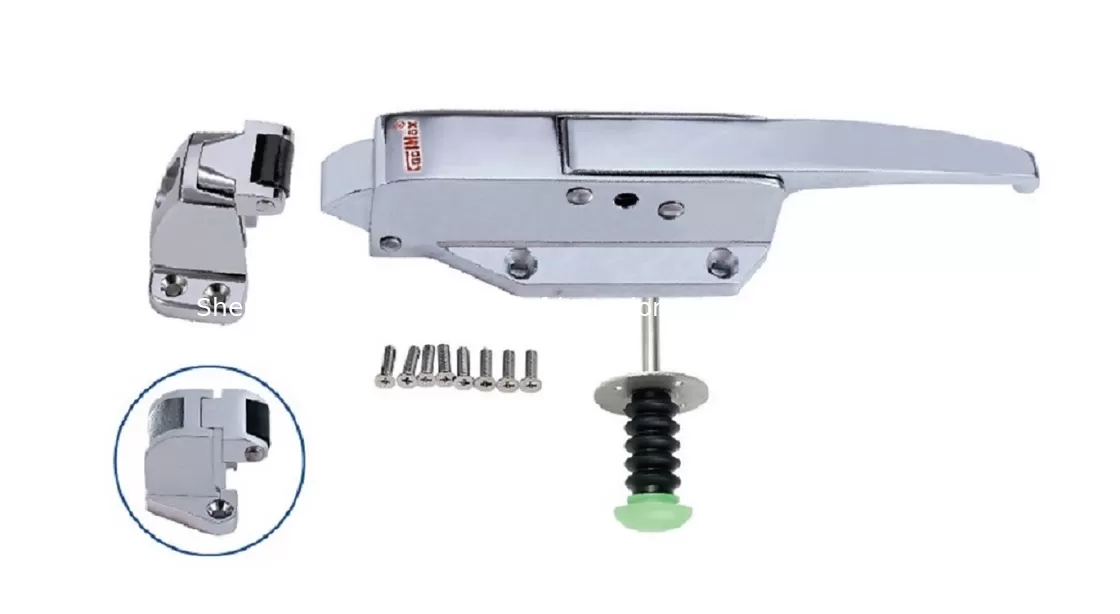

CM-1178-L PLANE SAFETY LATCH

Material: high pressure die-cast zinc, with a set of stainless steel screw, adjustable height from 31.00mm--38.00mm

Use with CM-1178-E3 inside release handle, CM-1178-E1 or CM-1178-E2 are on your option

Safety Latches & Inside Release Handles
